Image emitters are commonly used to create particle animations, They are used on many things such as Picking up a Potion, Using a Kammi , Picking up a new wand etc.

Coding an image emitter[]

An image emitter is made using a ParticleEmitterComponent more info on the image emitter component can be found in component_documentation.txt under Steam\steamapps\common\Noita\tools_modding

The main parts of an image emitter involve:

Var Name Value Allowed Description
image_animation_file "String path to file" "file to use for image-based animation"
image_animation_speed [0, 255] "how long do we stay on one frame of image-based animation. 0.5 means two game frames per one animation frame. 2.0 means two animation frames per one game frame, and so on. 0 means we always emit at time 0 of the animation."
image_animation_loop [0, 1] "does image-based animation keep looping while this component is active?"
image_animation_phase [0, 1] "the point in time [0,1] where the image-based animation will start the first cycle"
image_animation_emission_probability [0, 1] "[0,1], probability of emitting image based particles is multiplied with this"
image_animation_raytrace_from_center [0, 1] "enable this to disable image_animations (from the center) going through the world"
image_animation_use_entity_rotation [0, 1] "if 1, image animation emission will be rotated based on entity rotation"

Here's an example of an image emitter with a played sound

<Entity name = "Emit_Effect" serialize = "1">
	<InheritTransformComponent
		only_position="1"
    ></InheritTransformComponent>

  	<ParticleEmitterComponent
		emitted_material_name="water"
		gravity.y="0.0"
		offset.y="-18"
		lifetime_min="4"
		lifetime_max="8"
		count_min="8"
		count_max="8"
		render_on_grid="1"
		collide_with_grid="0"
		collide_with_gas_and_fire="0"
		fade_based_on_lifetime="1"
		area_circle_radius.min="0"
		area_circle_radius.max="0"
		cosmetic_force_create="0"
		airflow_force="0.251"
		airflow_time="1.01"
		airflow_scale="0.05"
		emission_interval_min_frames="1"
		emission_interval_max_frames="1"
		emit_cosmetic_particles="1"
		image_animation_file="mods/Ride Minecart/data/images/Minecart_Emit.png"
		image_animation_speed="0.1"
		image_animation_loop="0"
		image_animation_raytrace_from_center="0"
		is_emitting="1"
    ></ParticleEmitterComponent>

	<LifetimeComponent
		lifetime="500" >
	</LifetimeComponent>

	<!--
    <AudioComponent
      file="data/audio/Desktop/event_cues.bank"
      event_root="event_cues/spell_refresh">
    </AudioComponent>
	-->

    <AudioLoopComponent
		_enabled="1"
		file="data/audio/Desktop/misc.bank"
		event_name="misc/runestone_loop"
		calculate_material_lowpass="0"
		auto_play="1"
	></AudioLoopComponent>
</Entity>

to run this image emitter you would do

EntityLoad("Path to Image emitter", Xcoord, Ycoord)

Image Emitters[]

Image Emitter rely on a few conditions

  • if the background of the image is clear it should be replaced with black
  • The colors and shades of Red, Green, Yellow and Black should be only used


Different colors effect the image this is shown below;

Color(s) Effect Image
Red Controls pixel spawn rate

Light red = highest spawn rate

Dark red = lowest spawn rate

Green Controls pixel time

Dark green = gets spawned first

Light green = gets spawned last

Green + Red Controls pixel time and keeps spawn rate constant

Red = first to spawn

Yellow = last to spawn

Yellow + Red.png

Advanced Image Emitters[]

Once you come to grips with how image emitters works you can begin to understand how certain aniamtions are formed. Take the Kammi for example this is summoned using a combination of Green and Red in the image. The red causes the animation to have a constant amount of pixels and the green represents the animtion going to the centre (time) combined togther making yellow this creates the final animation of the Kammi.

Kammi Summoning using a particle Emitter

The Kammi particle emitter image which uses a combination of red and green thus forming a yellow

Creating your own Kammi effect[]

Creating the kammi effect is probably the most difficult method to do (atleast in my opinion) - so i will guide you on how to do it :D

What i'm using[]

For this tutorial i will be using:

If you aren't using gimp you need to make sure your software has a Distance Transform tool.

Steps[]

Now follow the steps below:

Steps Reference
1. Begin by making your shape - make sure its not overly complex

otherwise it won't work, also don't bother adding color just make the shape

Step 1-3 final product.

2. Color the image completely black
3. Now fill the background white - make

sure the background and the image are not seperate layers

4. Now goto Filters/G'MIC-Qt.....

(this name may change depending on install or other

parameters also this may take a while to load upon first time use so be patient)

Step 4.

5. Search for "Distance Transform"

"Distance Transform Dialogue" Step 5-7.

6. Once selected Set the values shown - for different effects try messing around with these settings
7. Then click [apply] and [ok]
8. you should now have something like this but obviously more close to resemblind your shape:

Step 8 final product.

9. Now select the magic wand tool and set threshold to 0 now click in the very centre of the

image - if the selection resembles your shape the effect has worked - if not here are some tips:

  • Begin by pressing Ctrl+Z (undoing) until you get back to your original black shape
  • Make the shape simpler
  • Check theres no gaps in the image
  • Make sure your selecting the entire canvas with ctrl+A
  • Revisit the settings of the distant transform and check they are correct
  • Make sure you've selected the correct area of the centre of the shape
  • Make sure the threshold is set to 0 on the magic wand tool

Step 9 final product.

10. Now fill the selection yellow
  • Make sure when using the paint bucket tool that the threshold is set to 0 otherwise bleeding will occur
  • Make sure the yellow is the brightest it can be
  • The above is important because if its a darker yellow it will be show before the animation is finished


Afterwards press Ctrl+A to select the entire canvas

Step 10 final product.

11. Now go into Colors/Curves and mimic these settings, click ok after mimicing them and your image should be blue - if so you've done it correct - make sure to copy the chart too

Step 11 "Settings to mimic".

12. Now head over to Colors/Colorize and select the color to be a shade of yellow proceed to tweak the settings until you get a result you like mine is shown here:


After doing this Remember to redo Step 10.

Make sure you can still select/fill your imageyellow.

Step 12 "My image settings".

13. Wohoo! you've completed the image editing part! :)


Now you can insert the animation here's some code to test it - make sure to fill in any parts labelled with "FILL IN"
<Entity name = "Minecart_Effect" serialize = "1">
	<InheritTransformComponent
		only_position="1"
    ></InheritTransformComponent>

  	<ParticleEmitterComponent
		emitted_material_name="spark_green"
		gravity.y="0.0"
		offset.y="-18"
		lifetime_min="4"
		lifetime_max="8"
		count_min="8"
		count_max="8"
		render_on_grid="1"
		collide_with_grid="0"
		collide_with_gas_and_fire="0"
		fade_based_on_lifetime="1"
		area_circle_radius.min="0"
		area_circle_radius.max="0"
		cosmetic_force_create="1"
		airflow_force="0"
		airflow_time="0"
		airflow_scale="0"
		emission_interval_min_frames="1"
		emission_interval_max_frames="1"
		emit_cosmetic_particles="0"
		image_animation_file="FILL IN"
		image_animation_speed="2"
		image_animation_loop="1"
		image_animation_raytrace_from_center="0"
		is_emitting="1"
    ></ParticleEmitterComponent>
</Entity>
since its looped i reccomend doing this in your init.lua file:
function OnPlayerSpawned(player)
    -- fly next to the spawn mountain and right a bit
    -- if you can't find it try adjusting the "Y" variable
    -- the higher the "Y" variable is teh higher the animation will be
    local Y = 200
    EntityLoad("mods/Ride Minecart/files/Minecart/minecart_effect.xml", 0, 0-Y)
end

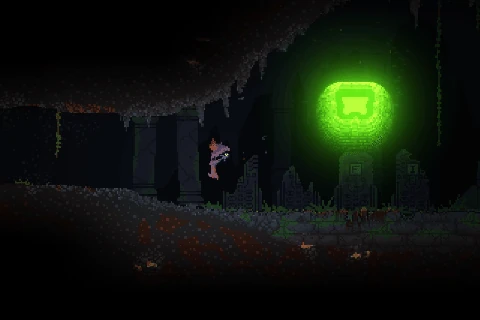

Step 13 final product :).

Other Methods[]

Example of gradient norm effect which is way nicer - but im not going to show you how to do everything! :)

Many other methods could be used to achieve this effect - some maybe even leading to a nicer version of this here are some other ways of doing it but theres many more - if you happen to know any please feel free to add them :D

  • Gaussian blur
  • Enlarge the image, have it white, on a black background, and apply distance transform
  • Gradient Norm

Made by bobbymcbobface[]

With help from the awesome community that is noita :)
